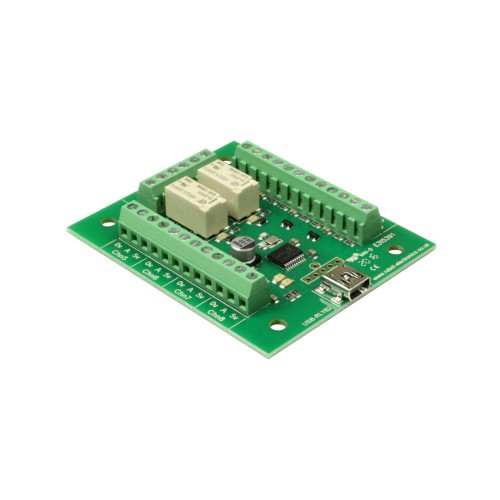

•  USB-RLY82 - 2 channel USB relay

Powered and Controlled from the USB bus.
The relays used on this board are premium ultra low power 50mW coil types.


Relays - 2
Analogue/digital inputs - 8 (5V max, choice of 5V, 4.096V or 2.048V scale for Analogue conversion)
Power
 - Powered from standard USB bus
Control interface - USB
Relay current - Up to 1Amp @30vdc or 60vac. 500mA@110vac. 250mA@250vac
Connections - Screw Terminals for N/O N/C and Common contacts.


Resources:

Datasheet and manual

Write a review

Please login or register to review

USB-RLY82 - 2 channel USB relay

  • Brand: Devantech
  • Product Code: 23022
  • Availability: In Stock
  • 30.19€

  • Ex Tax: 24.95€
