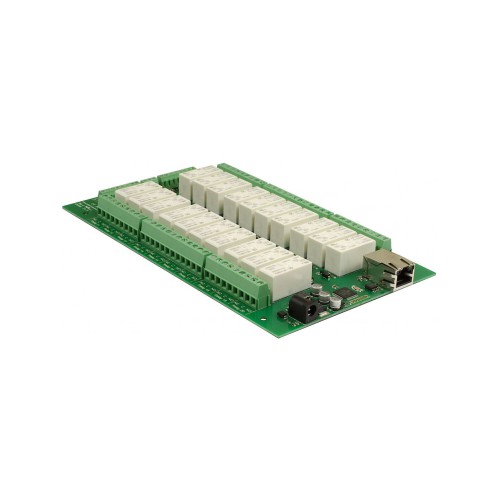

• ETH8020 - 20 x 16A ethernet relay

Controlled over Ethernet using simple TCP/IP commands.

Relays - 20
Analogue Inputs (0-5v) - 8
Power - 12V DC adaptor, supplied separately.
Configuration & Test interface - HTTP (webpage).
Control interface - TCP/IP over Ethernet.
Relay current - Up to 16Amp @24vdc or 250vac
Connections - Screw Terminals for N/O N/C and Common contacts.
Ethernet connection - 100mb full duplex


Full ETH8020 Documentation


(Not version B, this is the original board)

Write a review

Please login or register to review

ETH8020 - 20 x 16A ethernet relay

  • Brand: Devantech
  • Product Code: 23024
  • Availability: In Stock
  • 90.75€

  • Ex Tax: 75.00€
