Description:
The Hydroponics Kit
reads pH (acidity), Conductivity (how saline is the water), and temperature . The pH and other readings readings
are automatically temperature compensated and uploaded to ThingSpeak,
which allows for remote readings on a phone, tablet or PC. The code and
instructions are available in the download section of this page.
Personal usage of ThingSpeak is free.

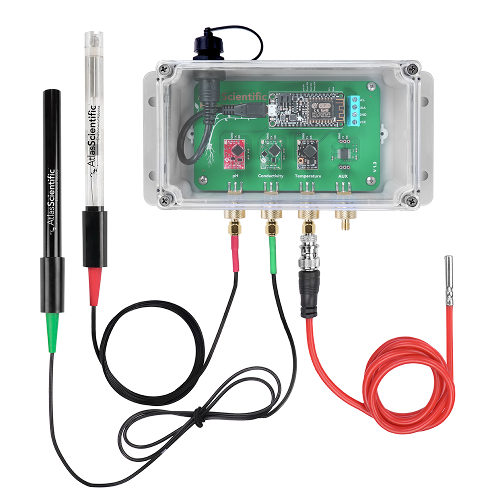

The Wi-Fi Pool Kit comes with:
- 1x Enclosure with hardware assembled within
- 1x EZO pH circuit
- 1x EZO EC Conductivity circuit
- 1x EZO RTD Temperature circuit
and:
- 1x Consumer grade pH probe
- 1x Conductivity probe K 1.0
- 1x PT-1000 temperature probe
Also:
6x 20ml calibration solution pouches (2x pH 4, 2x pH 7 and 2x pH 10) and 2 x conductivity solutions (K 0.1, K 1 or K 10)
Standard this Kit comes with a K 1.0 conductivity probe: please indicate in the order comment field when you need the 0.1 or 10 probe)!!
Specifications:
• No soldering required |
• No programming necessary |
• Automatically uploads data to ThingSpeak cloud |
• Access to data on phone, tablet or PC |
• Auto temperature compensation for pH and EC |
• Pre-drilled / wall mountable case with clear top |
• pH range 0 − 14 / resolution 0.01 |
• Conductivity range: 0 − 200K / resolution 1μS |
• Operating voltage : 5V |
• Current consumption : 310mA at 5V |
• Three electrically isolated slots (pH, EC and AUX) |
• One auxiliary (AUX) slot for an additional sensor |
• Calibration solutions included. |
• IP64 (dust and water splash proof) |
• I2C Mode only |
Note: Product appearance may be different from pictures. Opened Kits cannot be returned.
Atlas-Scientific Wi-Fi Hydroponics Kit ( #Wi-Fi-HK )
- Brand: Atlas-Scientific
- Product Code: 12580
- Availability: In Stock
-
715.75€
- Ex Tax: 591.53€
