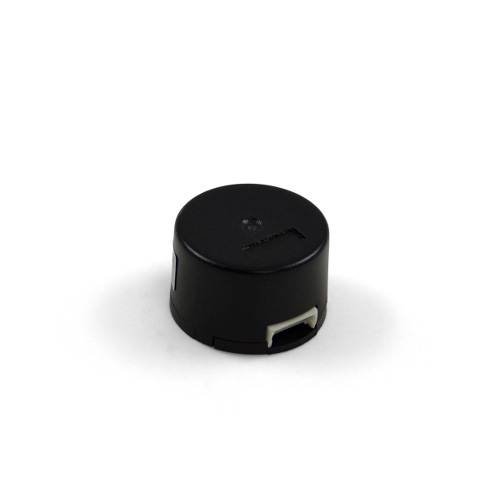

Description:
This compact, economical optical quadrature encoder can be attached to the 4mm rear shaft of a motor. It has 300 counts (full quadrature cycles) per rotation and can be installed by fitting it over the shaft, mounting it to the back of the motor, and tightening the set-screw. This encoder does not support the use of an index channel.
The mounting holes on the HKT22 encoder line up with the holes on the back of any rear-shaft stepper motor (from Phidgets, Inc.) that we currently sell. It connects to any of the following interface boards via the included cable:
1057 - PhidgetEncoder HighSpeed
1047 - PhidgetEncoder HighSpeed 4-Input
Specifications:
Encoder Properties
| Output Circuit Type | Push-Pull (Single-Ended) |
| Encoder Resolution | 300 CPR |
Electrical Properties
| Supply Voltage Min | 5 V DC |
| Supply Voltage Max | 5 V DC |
| Output Frequency Max | 30 kHz |
Physical Properties
| Shaft Diameter | 4 mm |
| Operating Humidity Min | 30 %RH |
| Operating Humidity Max | (Non-condensing) 85 %RH |
| Operating Temperature Min | -10 °C |
| Operating Temperature Max | 85 °C |
| IP Rating | IP40 |
| Weight | 4 g |
Resources:
Datasheet
Optical Rotary Encoder HKT22
- Brand: Phidgets
- Product Code: 3531_0
- Availability: In Stock
-
32.61€
- Ex Tax: 26.95€
