Description:
This miniature, light (13 grams) RC servo is ideal for projects where size and weight are important. It has metal gears and generates 1.3kg-cm of torque at 4.8V.
Specifications:
Motor Properties
| Motor Type | Limited Rotation Servo |
| Range of Rotation | 180° |
| Maximum Speed at Rated Voltage | 600°/s |
| Rated Torque | 1.3 kg·cm |
Physical Properties
| Gear Train Material | 4 Metal, 1 Plastic |
| Bearing Type | Single Ball Bearing |
| Motor Length | 22.2 mm |
| Motor Width | 22.9 mm |
| Motor Depth | 12.3 mm |
| Wire Length | 180 mm |
| Weight | 13.5 g |
Electrical Properties
| Rated Voltage | 5 V DC |
| Rated Current (on 1061 controller) | 110 mA |
| Rated Current (on 1066 controller) | 130 mA |
| Stall Current (on 1061 controller) | 780 mA |
| Stall Current (on 1066 controller) | 415 mA |
Resources:
Accessories Bag

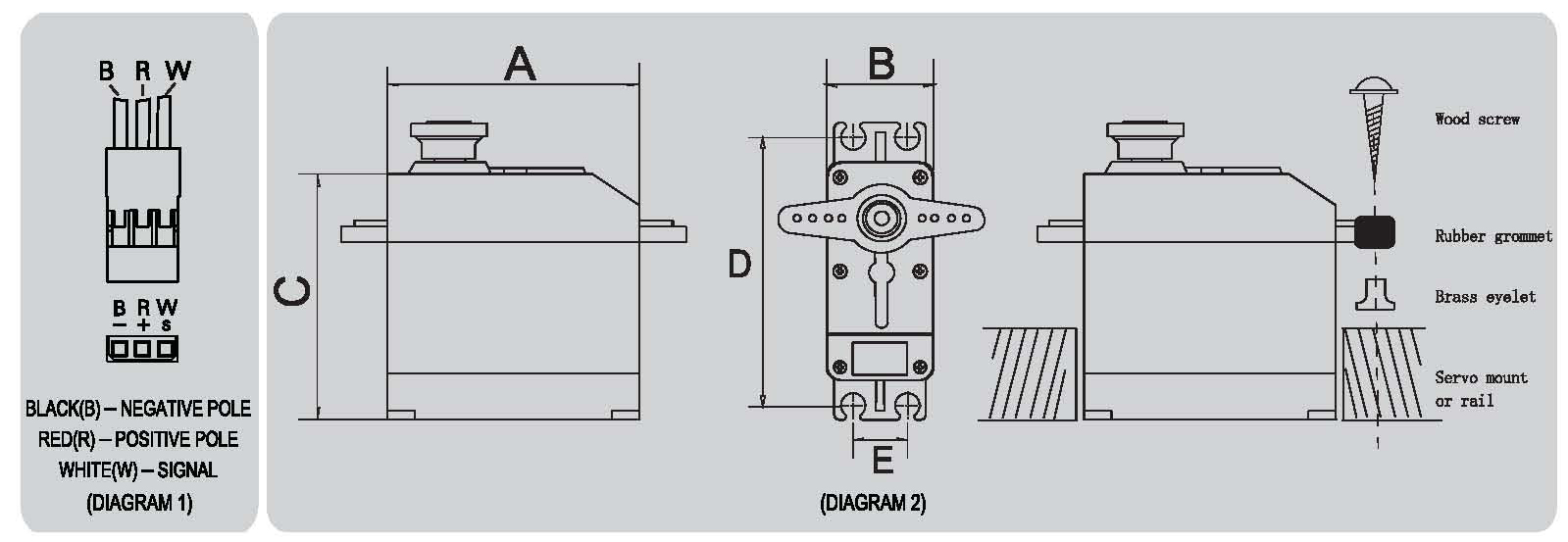

Mechanical Drawing
| A | B | C | D | E |
| 22.9mm | 12.3mm | 22.2mm | 24.5 | 6 |
SpringRC Micro Servo (SM-S2313M)
- Brand: Phidgets
- Product Code: 3206
- Availability: In Stock
-
15.20€
- Ex Tax: 12.56€
