Description:
This stainless steel mounting nut is designed to be used with the TMP4106 - K-type Probe Thermocouple. Just slide the pieces on and tighten to attach. Once it's secured, you can mount it to a panel or inside of an enclosure with a simple M12x1.5 nut and washer.

Products comes with a mounting sleeve for the thermocouple.

Specifications:

• Material: Stainless Steel
• Screw Thread Size: M12x1.5
• Inner Diameter: 3.2 mm

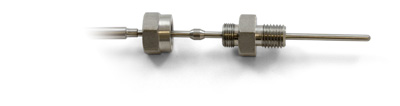

• Slide the shorter nut onto the thermocouple with the threaded end facing outward
• Slide on the mounting sleeve
• Slide the longer nut onto the thermocouple with the long end facing outward
• Move the pieces to the desired length on the thermocouple and tighten the front and back nuts until secure
